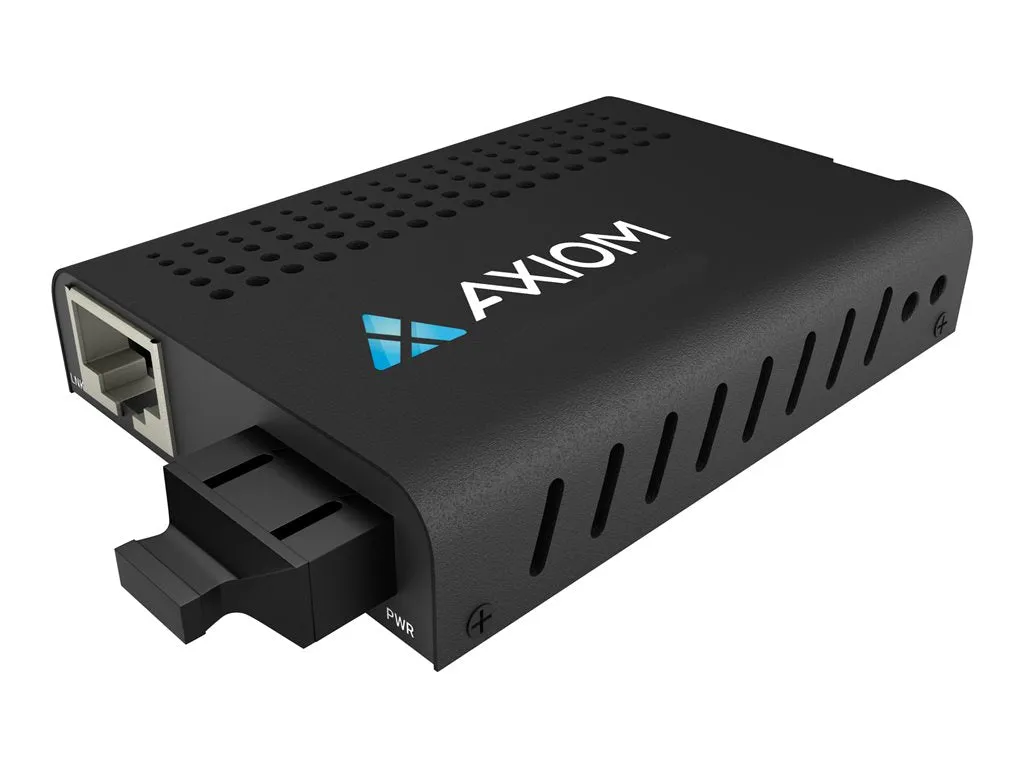

Axiom Mini - Fiber media converter - 1GbE - over CAT 5/5e/6 - 10Base-T, 1000Base-LX, 1000Base-SX, 1000Base-ZX, 1000Base-TX, 100Base-TX - up to 43.5 miles - 1310 nm - TAA Compliant

• Efficient connectivity
  The Axiom Mini fiber media converter ensures seamless connectivity across different network protocols, supporting Ethernet, Fast Ethernet, and Gigabit Ethernet. Its compatibility with various cabling types, including Ethernet 1000Base-LX/SX/TX/ZX and 100Base-TX, makes it a versatile solution for diverse networking environments.
• Robust performance
  Designed to facilitate smooth data transmission, the Axiom Mini boasts a data transfer rate of 1 Gbps, complemented by a 16 KB Jumbo Frame and a 384KB packet buffer. These features, along with full and half duplex modes, ensure efficient handling of high-volume network traffic.
• Advanced features
  This device comes equipped with Automatic Link Restoration and a Link Fault Pass Through function (LFP), enhancing network reliability. The built-in DIP switch and LED status indicators provide easy management and monitoring of network status, ensuring optimal performance.
• Extended reach
  With a maximum transfer distance of 70 km and an optical wavelength of 1310 nm, the Axiom Mini is capable of extending your network reach further than standard media converters. This makes it a suitable choice for organizations looking to expand their network over long distances.
• Energy-efficient design
  The internal power supply of the Axiom Mini is designed to be energy-efficient, consuming only 2 Watts of power. This not only reduces operational costs but also supports organizations in achieving their energy conservation goals.

The Axiom Mini 10/100/1000Base-TX to 100/1000Base-FX Media Converter Series is a Gigabit Ethernet stand-alone Mini unmanaged media converter that provides cost effective, entry-level media conversion between Copper RJ45 10/100/1000Base-TX ports and 100/1000Base-FX fiber optic ports. Available with an open SFP port or its fixed connector configuration, deployments can be just plug-and-play or are fully customizable with the transceiver of your choice. With its small size, it is ideal for locations where space is limited. Choose from Multimode or Single-mode fiber connections to meet the distance requirements of your network.
• Unit and Port LEDs allow for quick status information
• Auto-Negotiation
• Full-Duplex or Half-Duplex Operation Modes
• Auto-MDI/MDIX
• Automatic Link Restoration
• Connect to legacy network equipment
• Eliminate Collision Domains
• 10/100/1000Base-TX UTP to 1000Base-FX Fiber media convertion
• Supports IEEE802.3U IEEE802.3z 1000Base-TX/FX protocols , IEEE802.3ab standards
• Available with Open SFP Port or optional built in LC/SC/ST Connections
• DIP switch to set different configurations
• Compact package size
• Supports IEEE802.3x flow control; 100Base-FX interface; auto MDI-MDIX function; LFP function.

• Supports a wide range of networking protocols including Ethernet, Fast Ethernet, and Gigabit Ethernet
• Data transfer rate of 1 Gbps for efficient network traffic handling
• Includes Automatic Link Restoration and Link Fault Pass Through function for enhanced network reliability
• Maximum transfer distance of 70 km, suitable for long-distance network extensions
• Energy-efficient with a low power consumption of 2 Watts
