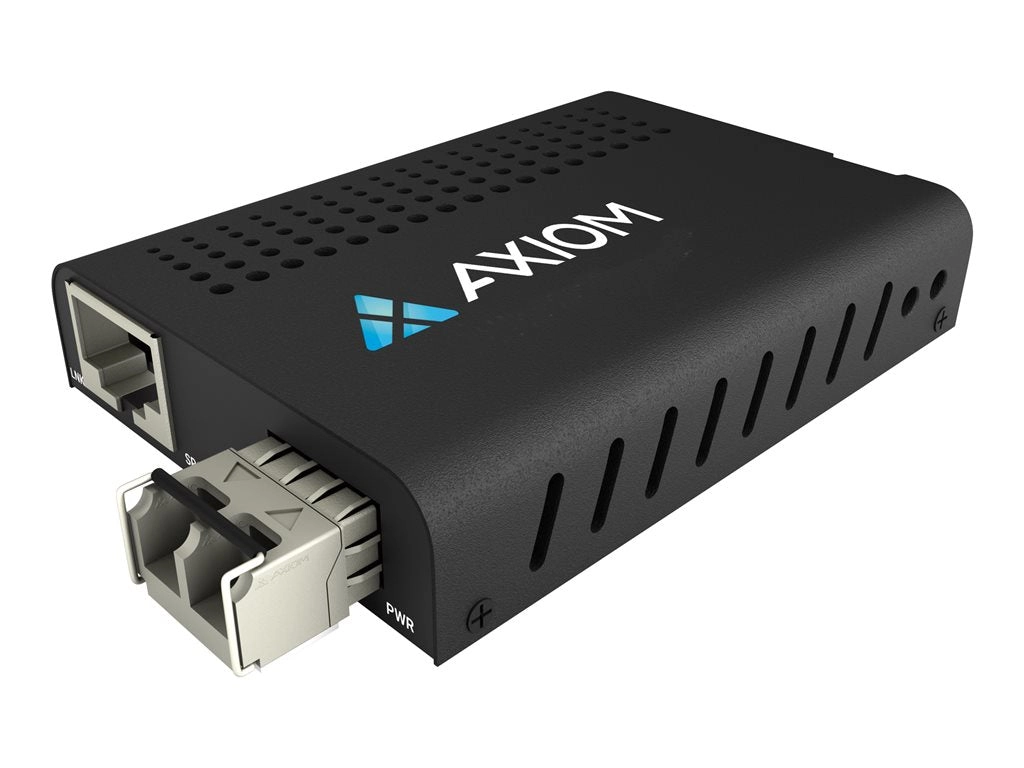

Axiom Mini - Fiber media converter - 1GbE - over CAT 5/5e/6 - 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T - RJ-45 / LC Duplex multi-mode - up to 1.2 miles - 1310 nm - TAA Compliant

• Efficient connectivity
  The Axiom Mini ensures seamless integration into existing networks with support for multiple Ethernet standards, including Ethernet 10Base-TX/100Base-TX/1000Base-TX and Ethernet 1000Base-SX, making it a versatile choice for enhancing network connectivity.
• Robust performance
  With a data transfer rate of 1 Gbps and features like a 16 KB Jumbo Frame, 384KB packet buffer, and Automatic Link Restoration, this device is engineered to handle high-bandwidth applications efficiently, ensuring smooth data transmission across the network.
• Advanced features
  The Axiom Mini comes equipped with LED status indicators, a Link Fault Pass Through function (LFP), auto-negotiation, and a built-in DIP switch, offering comprehensive control over network configurations and enhancing troubleshooting capabilities.
• Durable design
  Designed to operate in a wide range of environmental conditions, with an operating humidity range of 10 - 90% (non-condensing) and temperature tolerance from 0°C to 50°C, the Axiom Mini is built to withstand challenging operational environments.
• Energy efficient
  With a low power consumption of just 2 W, this fiber media converter is not only powerful but also energy efficient, making it an ideal solution for businesses looking to optimize their energy usage while expanding their network.

The Axiom Mini 10/100/1000Base-TX to 100/1000Base-FX Media Converter Series is a Gigabit Ethernet stand-alone Mini unmanaged media converter that provides cost effective, entry-level media conversion between Copper RJ45 10/100/1000Base-TX ports and 100/1000Base-FX fiber optic ports. Available with an open SFP port or its fixed connector configuration, deployments can be just plug-and-play or are fully customizable with the transceiver of your choice. With its small size, it is ideal for locations where space is limited. Choose from Multimode or Single-mode fiber connections to meet the distance requirements of your network.
• Unit and Port LEDs allow for quick status information
• Auto-Negotiation
• Full-Duplex or Half-Duplex Operation Modes
• Auto-MDI/MDIX
• Automatic Link Restoration
• Connect to legacy network equipment
• Eliminate Collision Domains
• 10/100/1000Base-TX UTP to 1000Base-FX Fiber media convertion
• Supports IEEE802.3U IEEE802.3z 1000Base-TX/FX protocols , IEEE802.3ab standards
• Available with Open SFP Port or optional built in LC/SC/ST Connections
• DIP switch to set different configurations
• Compact package size
• Supports IEEE802.3x flow control; 100Base-FX interface; auto MDI-MDIX function; LFP function.

• Supports a wide range of Ethernet standards for comprehensive network compatibility
• 1 Gbps data transfer rate for high-speed connectivity
• Includes advanced features like auto-negotiation and LED status indicators for enhanced network management
• Operates efficiently across a broad temperature and humidity range, ensuring reliability in various environments
• Energy-efficient design with a low power consumption of 2 W
