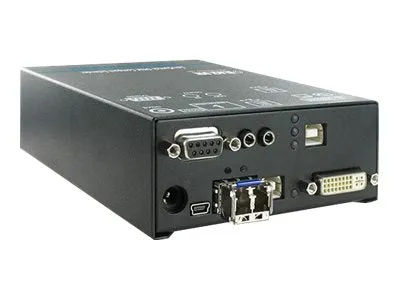

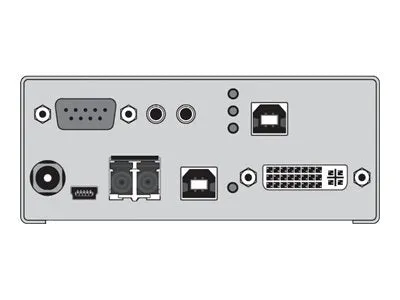

Name: Black Box ServSwitch DKM Transmitters, Fibre Single-Link DVI - Video/audio/USB/serial extender - up to 6.2 miles - for P/N: ACX0000, ACX1T-12A-SM
SKU: 292441

Product Details ＋

Black Box ServSwitch DKM Transmitters, Fibre Single-Link DVI - Video/audio/USB/serial extender - up to 6.2 miles - for P/N: ACX0000, ACX048, ACX080, ACX0808, ACX0816, ACX0832, ACX160, ACX1616, ACX1632, ACX288

Excellent DVI-D video quality
Thanks to the digital transmission of the video signal without any loss in quality, images are as sharp as if they were directly attached to the workstations. The enhanced video compression algorithms support 24-bit color depth for smooth color gradients up to resolutions of 2048 x 1152 over the full distance. Even interlaced digital video such as 1080i is now supported.
RS232/V.24 and audio
The models with serial and audio transmit this data along with the video signals. With analog audio support you may transmit acoustic alarms from your server or music in CD quality. As it has bi-directional audio support, you may also attach a microphone to send audio back to your workstation. For even better sound choose digital audio models. The transparent RS232/V.24 transmission with up to 19.2K bps allows you to connect touch screens and graphic tablets, as well as other serial equipment, to your system.
USB HID
The DKM KVM extender comes with USB HID ports for keyboard and mouse or other standard HID compliant devices. True USB emulation allows you to attach a wide variety of feature rich USB keyboards and mouse with full support of their extended functions.
Transparent USB 2.0
The DKM KVM extenders are optionally available with transparent USB 2.0 transfer supporting 400/480 Mbps. Use these models to expand your system with USB 2.0 devices like scanners, hard disks, memory sticks, printers or others at the remote end of your system.
More video formats than ever
Besides the DVI-D channels, you may soon expand your system with a variety of extra video formats making these extenders ideal for broadcasting applications. The VGA video option is fully down and up scalable up to 1920 x 1200. Using the included remote control, scaling becomes easy at both ends of the extension. Modules for SDI and HDSDI, EGI as well as RGBHV will be available soon with the modular housing concept starting with a 4U 4-slot chassis or larger.

CPU unit, use with the DKM FX or DKM FXC KVM matrix switch chassis or as standalone, point-to-point KVM extender. The fiber-compatible extenders can be used with multimode or single-mode fiber optic cable. Maximum distance over multimode fiber is 3281 feet (1000 m). Maximum distance over single-mode fiber is 6 miles (10 km). Also available in models compatible with CATx cable. Compact housing enables high-density mounting within 19" racks (up to four devices in 1U). Chassis range in size from 2 4 6 or 21 ports to 48 80 160 and 288 ports. The compact extenders also work as standalone point-to-point KVM extenders.
